Detailed Guide on Gable Boxes Dimensions for Packaging Needs
The packaging boxes aim to accommodate a product inside in a sophisticated manner. But some crafted boxes offer something more. Their overall structure is something that makes them more distinctive than the standard options. Among them, gable boxes stand out as the top choice, and here in this blog, we’ll explore their structural & dimensions aspects of it. So, let’s get further into it.

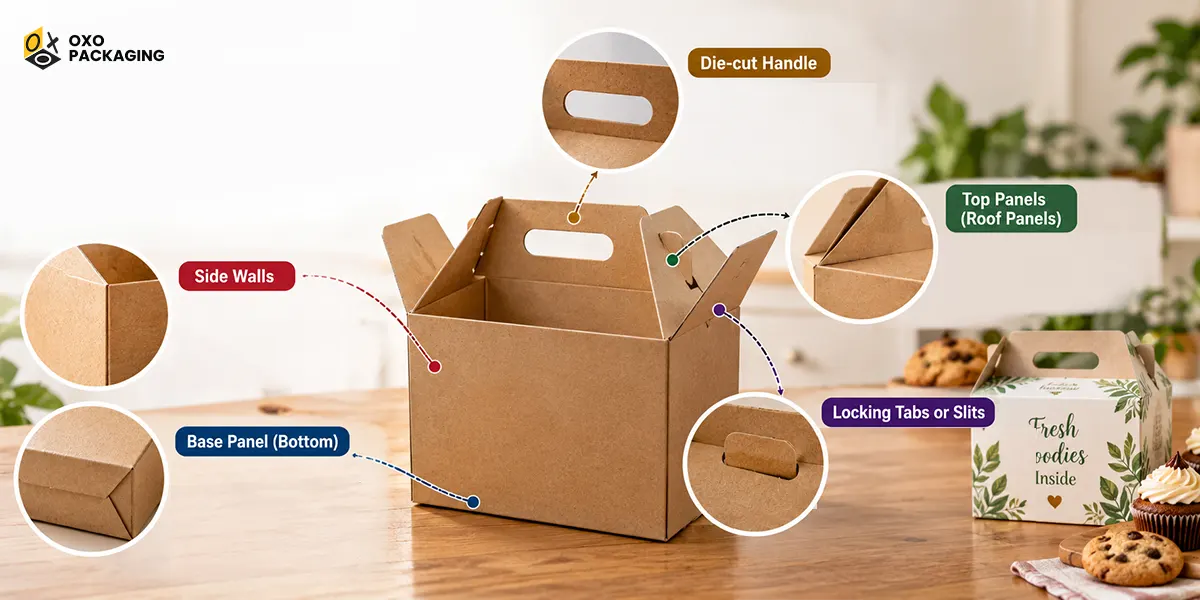

Basics Structural Elements of Gable Packaging Boxes
Whatever the size of the gable box is, it starts with the structure of the box, and it determines if the packaging is dependable or not for the item being packed in it. Below are some of the elements a typical gable box contains:
- Base Panel (Bottom): First of all, it offers a flat and stable platform for the box to support the weight of the content packed inside. There are multiple options available for this, such as standard tuck-bottom, snap-lock bottom, or even pre-assembled auto-bottom.
- Side Walls: There are a total of four vertical or slightly sloping side panels that turn the paper-based material into the storage space for the box. Without these walls there’s no box structure at all.
- Top Panels: Also known as the roof panels, these structural integrations are what make the gable boxes different from each other. These sloped flaps mimic the actual gable-style roof structure; that’s why they’re named custom gable boxes.
- Die-cut Handle: Though the handles are part of the sloped panels, they’re not present in all kinds of boxes, as some packaging may not have these. Since these handles are punched with hydraulic machines, they eliminate the demand for PVC- or plastic-based cord handles.
- Locking Tabs or Slits: Similar to the handles, some boxes contain interlocking flaps or tabs to maximize the structural features of the cardboard gable boxes. They add an extra layer of protection as it demands a sophisticated mechanism to let the box open.
Common Dimensions of Gable Boxes for Versatile Packaging Needs
Before you start measuring the dimensions of the gable boxes, below are some of the standard sizes you can take as a reference point. They’ll tell you how you can better calculate the dimensions of the existing boxes:
|
Size Tier |
Dimensions (L × W × H) |
Height (with Handle) |
Best Uses |
|
Mini |
3 × 2 × 2 in |
About 4 in |
Single-treat handouts, small party favors |
|
Small |
4 × 2.5 × 2.5 in |
About 5.5 in |
Candy bars, kids' meal boxes, small gifts |
|
Medium |
6 × 3.5 × 3.5 in |
About 8 in |
Cupcakes, cookie stacks, bakery items |
|
Large |
8 × 4 × 4 in (or 8 × 4.75 × 5.25 in) |
About 10 in |
Gift kits, larger retail products, host gifts |
|
Extra-Large (XL) |
9 × 6 × 6 in to 10 × 7 × 8 in |
Varies by die-cut |
Multi-product retail packaging, heavy gift sets |

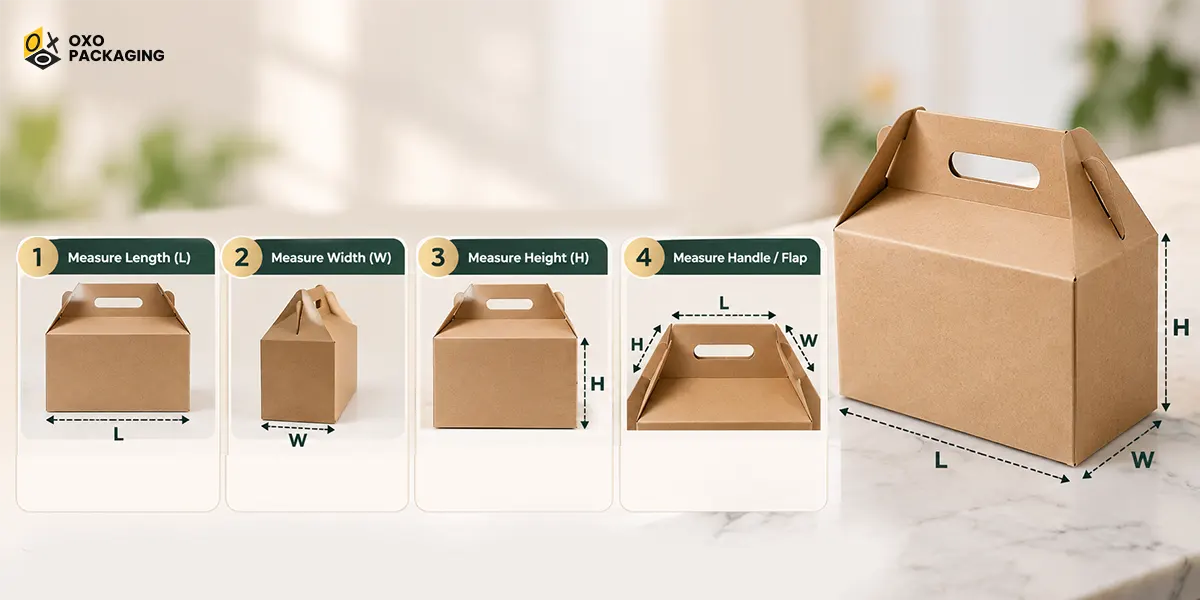

How to Measure Gable Box Dimensions Like Packaging Experts?
If you’re not sure how to optimally measure the dimensions of the gable boxes, then follow the steps mentioned below and perform this task at its best.
- Length (L): First, measure the longest side of the box, which starts with the base opening from left to right.
- Width (W): Then, measure the shorter side of the base opening, which is from front to back.
- Height / Depth (H): Once both measurements are taken, now measure the vertical side which is from the bottom floor of the box straight up to the bottom edge. You have to skip the roof and handle as they’re measured individually.
- Repeat the Same: Now, for the flap of the box, repeat the same process to measure the length, width, and height of the handle. This will give you a complete idea of the size of the closure side. While ordering the box, you can mention these details as you’ve taken and the packaging company will comprehend it to craft your boxes in a similar size.
The Bottom Line
All in all, we hope now you understand the dimensional and structural aspects of the gable boxes. They’re easy to measure, and even if you haven’t done this activity before, just proceed with the mentioned steps, and you’ll figure out the best way to calculate their dimensions. For further professional support, you can reach OXO Packaging anytime by calling us at (510) 500-9533 or writing your query to sales@oxopackaging.com for a detailed response.
Yes. The material’s selection can change the dimensional aspect of the gable boxes, but the change is very minimal. There’s a huge difference when the material is highly dense and has a sturdy structure.
Since the box’s structure is inspired by the roofs, they mimic the actual architecture. Some brands consider them for a reason, as these boxes better match their theme design.
Yes. Gable boxes contain both customization elements at once, including the inserts and the die-cut handles. One feature organizes packing content while the other offers carrying convenience to the customers.
There’s no hard and fast rule for the dimensional aspects of gable boxes. For instance, the roof’s size must add approx. 50% more than the box’s size to develop a well-presented structure design.
